Overview
The Task Planner provides a dedicated way to manage the work required to deliver outcomes within an initiative. Tasks connect day-to-day execution directly to strategic delivery by linking work items to outcomes and initiatives.
Tasks are always created within an Outcome, following the hierarchy:
Initiative → Outcome → Task
The Task Planner enables users to:
Break down outcomes into actionable work items
Assign ownership and track progress
Visualise delivery timelines using a Gantt chart
Manage all tasks across an initiative in a single view
Permissions
Action | Permission |
|---|---|
Configure custom fields | Strategic Portfolio Administrators |
Create or edit a task | Strategic Portfolio Full Access (or above) or Edit access to the initiative |
View tasks | Strategic Portfolio Member (or above) or View access to the initiative |
Fields on Tasks
These fields are available on all tasks in Kiplot.
Name | Type | Description |
|---|---|---|
Key | Text | Automatically assigned unique identifier, uneditable |
Name | Text | The title of the task |
Delivery Status | Dropdown | Progress status: To Do, In Progress, Done |
RAG Status | Dropdown | Status indicator: Red, Amber, Green |
Start Date | Date | Planned start date |
End Date | Date | Planned completion date |
Duration | Number | Difference between the planned start and end date in days |
Predecessor(s) | Relationship | Task dependencies (finish-to-start only) |
Order | Defines task sequence within a outcome | |
Custom Fields | Additional configurable fields |
Initiative Task Planner
The initiative view provides a centralised table of all tasks across all outcomes within that initiative.

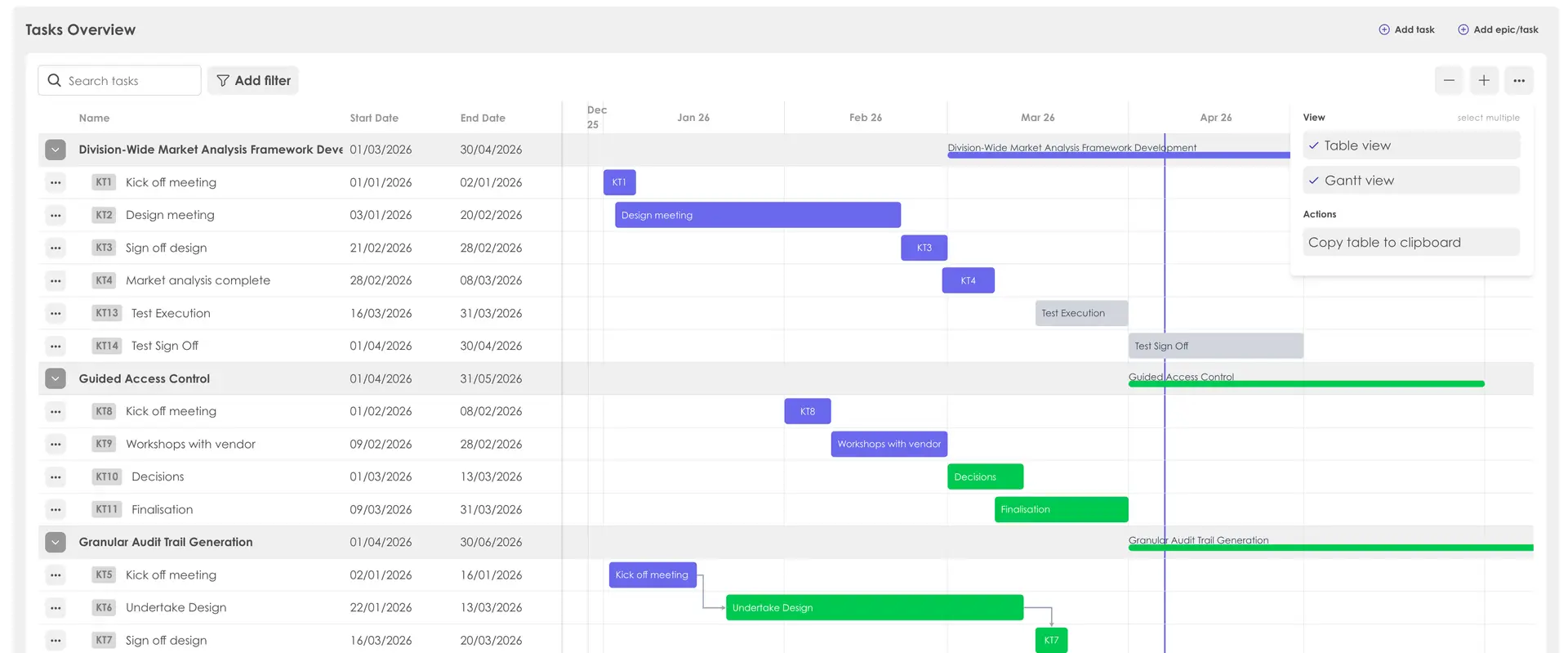

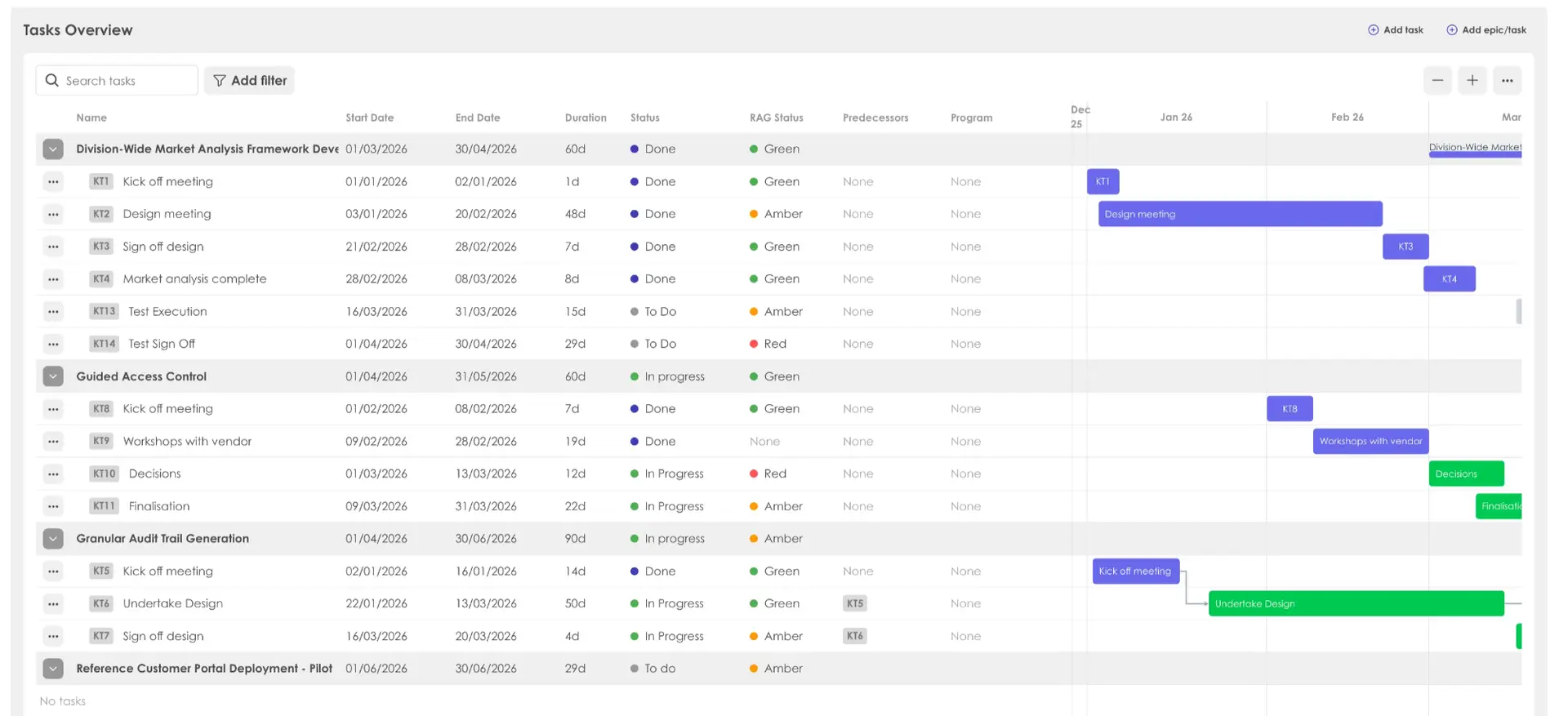

Gantt Chart (Timeline View)
The Task Planner includes a read-only Gantt chart to visualise task timelines.
Displays task start and end dates
Shows sequencing and overlaps
Reflects task ordering and dependencies
The Gantt chart is displayed side-by-side with the task table for easy reference.
Navigate to the tasks tab on an initiative
Press the three dot menu and select the Gantt View
Creating Tasks
You need Edit access to the initiative to create and edit Tasks in the initiative.

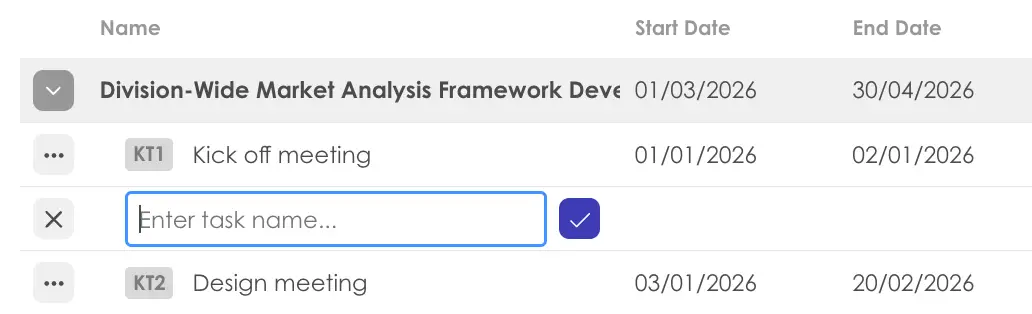

Create a Task inline
Navigate to a initiative and open the Tasks section

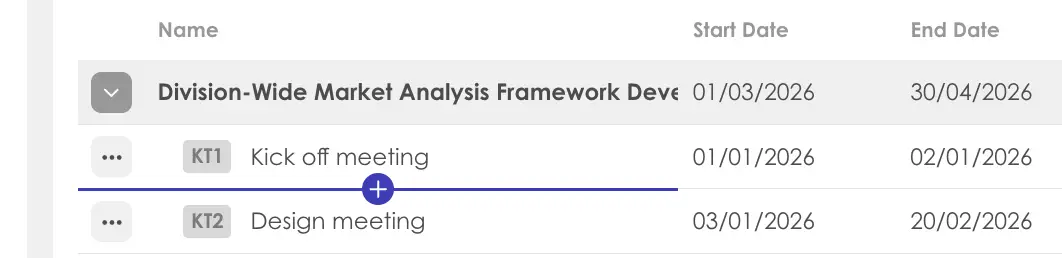

Hover below an outcome and see the blue plus
Click on the blue plus and enter the task’s name
Press enter or click the tick

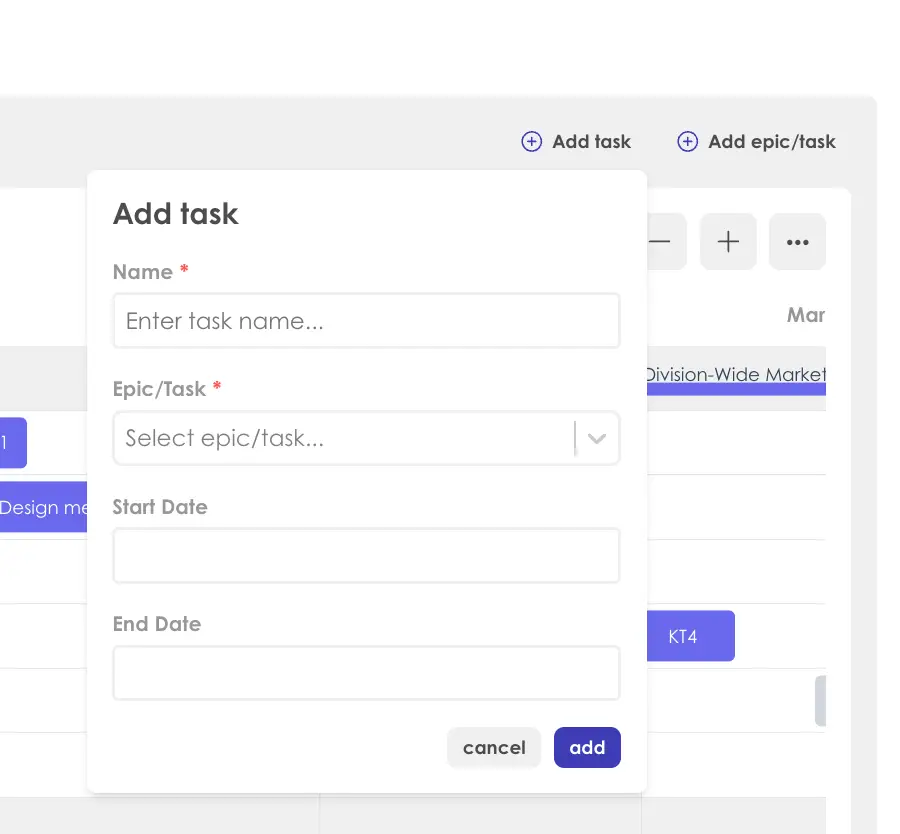

Create Tasks with the create modal
You can also create tasks directly from the initiative task table.
Navigate to a initiative and open the Tasks section
Click on the Add Tasks button and enter the required name and outcome
Click create
Managing Tasks
Inline Editing
All task fields can be edited directly within the table view.
Click into a cell to update values
Changes are saved automatically

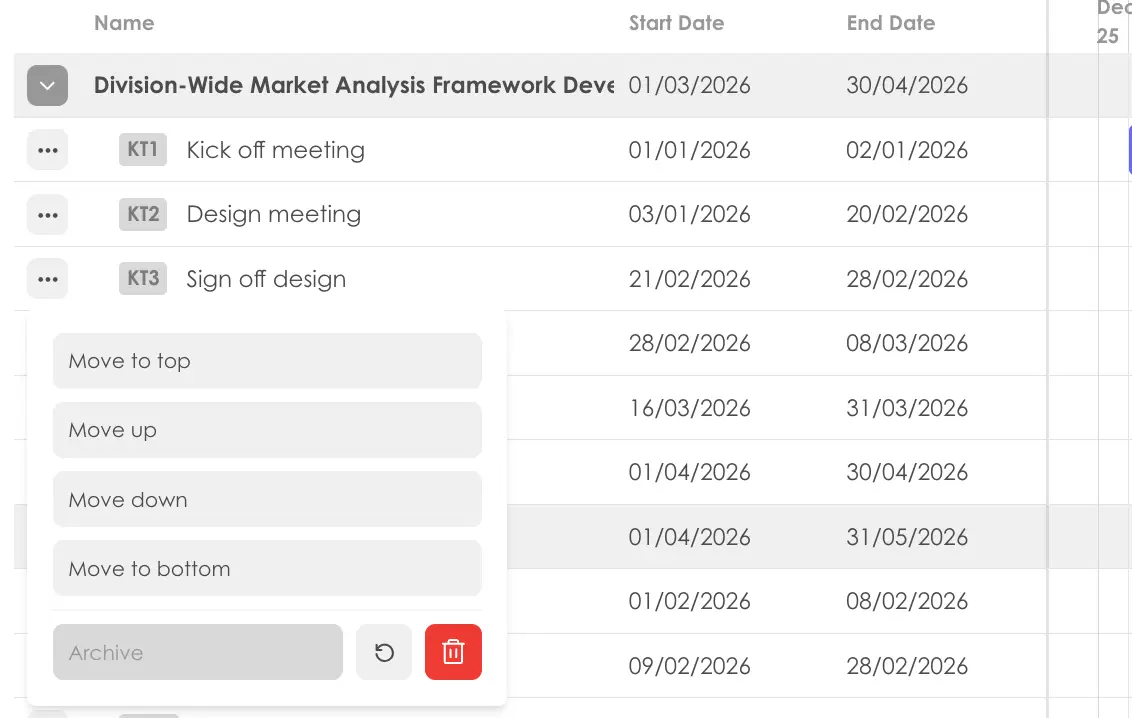

Reordering Tasks
Tasks can be reordered within a outcome.

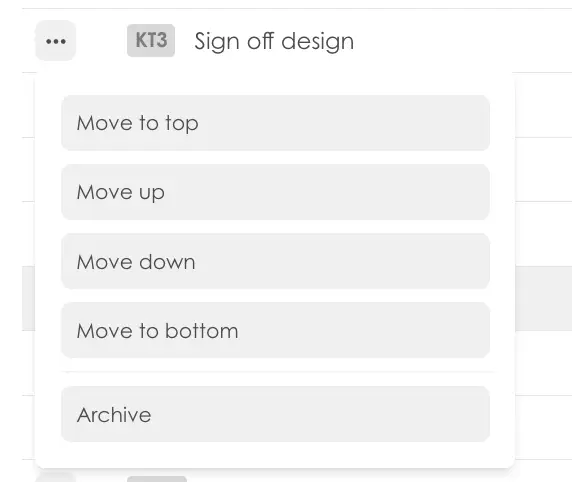

On the tasks list, press the three do menu icon next to the task you want to move.
Press the respective move button to move the task up or down.
Task Dependencies
Tasks support predecessor relationships.
Define which task must be completed before another starts
Dependencies are finish-to-start only
Broken or unresolved dependencies are indicated visually on the Gantt chart.
Filtering and Search
Tasks can be filtered and searched in table views.
Available filters:
Delivery Status
RAG Status
Search allows you to quickly locate tasks or outcomes by name.
Archiving a Task
When a outcome is archived, all its tasks are automatically archived
Press the three dots next to a task
Press the archive button in the menu
Configuration
You need Strategic Portfolio Administrator permissions to configure Tasks.
Tasks support Custom Fields. If you navigate to the ‘Custom Fields’ tab in the configuration, you can select ‘Tasks’ as a entity that your ‘Custom Fields’ are available on.
